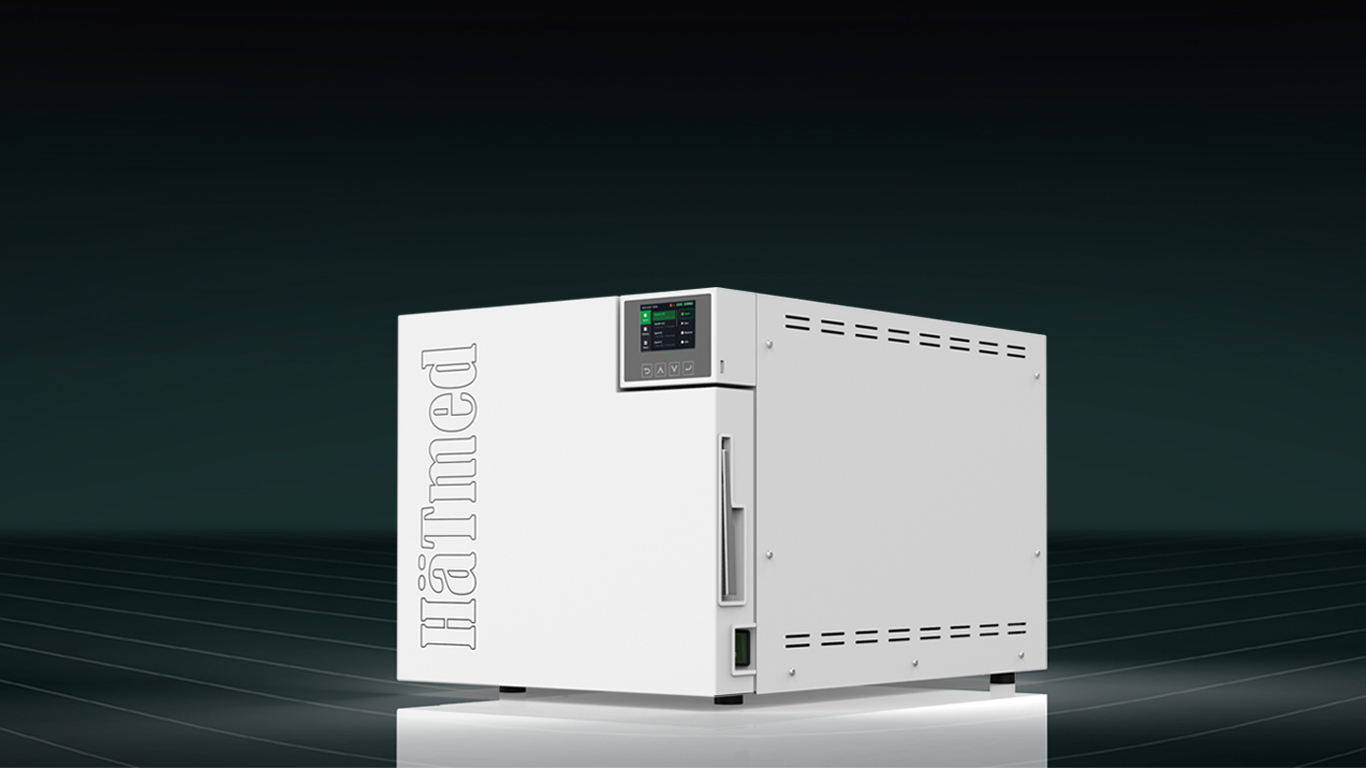

Autoclave Q70B(23L)

Autoclave Q70B(23L)

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
Quantity Product set quantity
Sign in/up now
Add to Wishlist
Sign in/up now
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Sign in/up now
Add to Wishlist
Sign in/up now

Description

Air Cooling Series—High Cost Performance

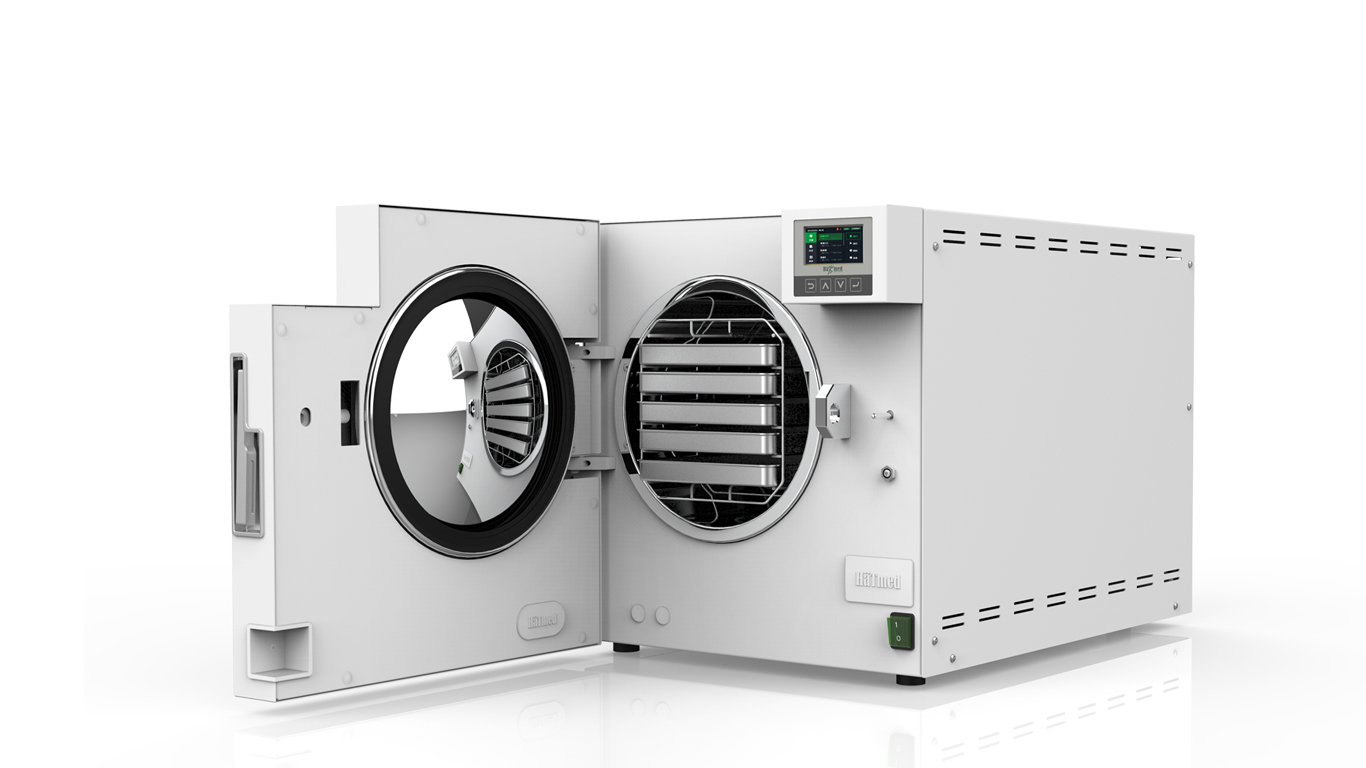

Q70B(23L)

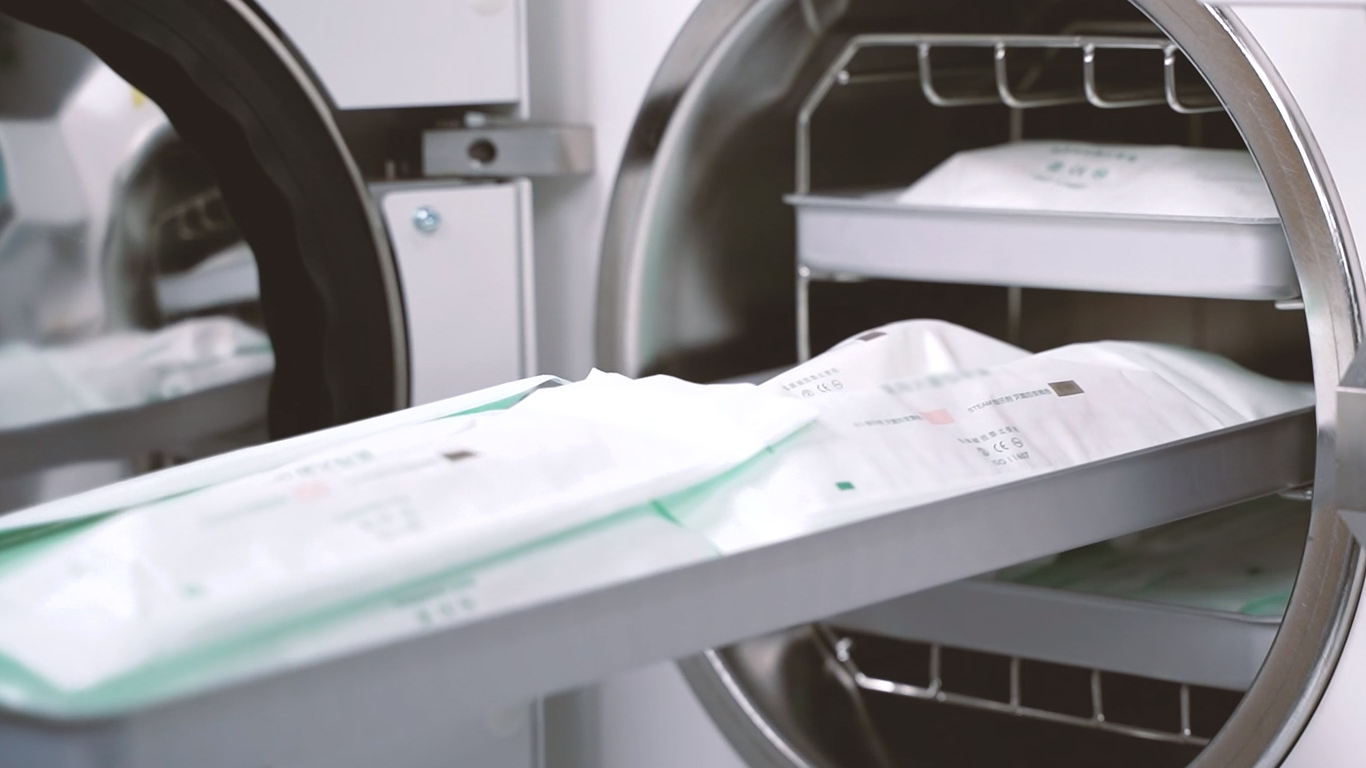

Q70B offers more internal space for use because it has a deeper interior space (46 cm in depth). In this way, longer instruments can also be safely sterilized. The strong vacuum pump and the efficient steam generator provide short cycle times.

Advanced performance

vacuum level -0.92bar
Q70B adopted with imported parts, vacuum pump from Germany (vacuum level -0.92bar), solenoid valves and water pump from Italy to secure high quality sterilization and maximum gentleness for your instruments.
Patented steam generator
Indepedant steam generator to produce saturated steam in a short time.

Additional drying function

Additional drying time can be set for some special cases to ensure the dryness under various conditions.

Full Featured

Language options
The user interface can be localized by selecting one of more than 20 available languages.
Reliability and traceability
Optional external printer, connected to Q50B/ Q70B via RS232 serial port, it allows all cycle data to be printed on rolls of thermal paper.
Single record export
If the printed sterilization record is lost, it is not necessary to export and reprint through the USB ash drive, and the missing record can be directly exported by the printer.

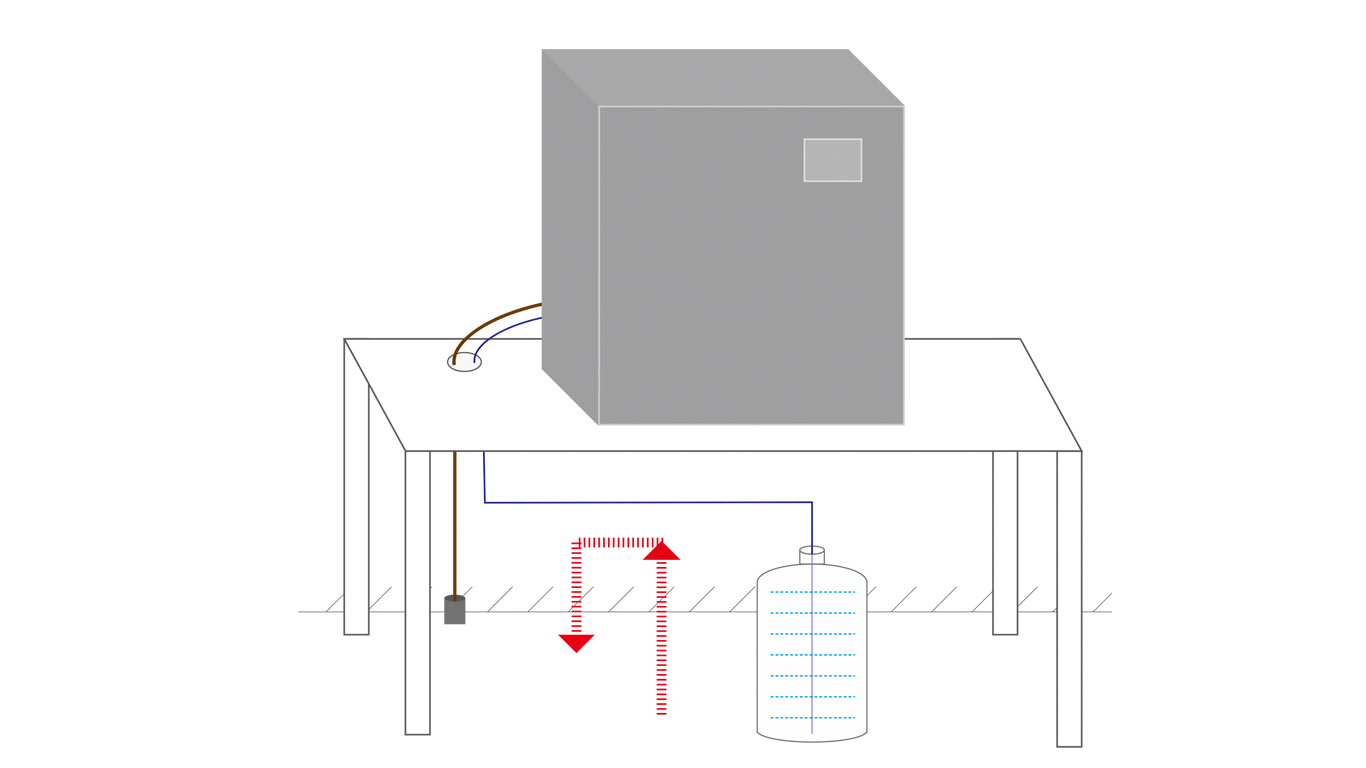

Optional with external or internal water tank

With external water tank, distilled water is fed from external water reservoirs automatically. After one cycle, no need of cleaning the water tank and discharge the waste water regularly.

Technical Parameters

Model： Q50B Q70B
Volume： 18L 23L
Screen： LCD liquid crystal display
Device Demensions： 450mm(W)*470mm(H)*560mm(D) 450mm(W)*470mm(H)*680mm(D)
Chamber Dimensions： ∮253mm*360mm ∮253mm*460mm
Weight： 60KG 65KG
Power： 2500W
220V/50Hz or 110V/60Hz
Printer： Build-in/External Printer (Optional)
Tray： 3 Layers Tray (5 Layer Tray is available)
Vacuum Level： -0.92bar
